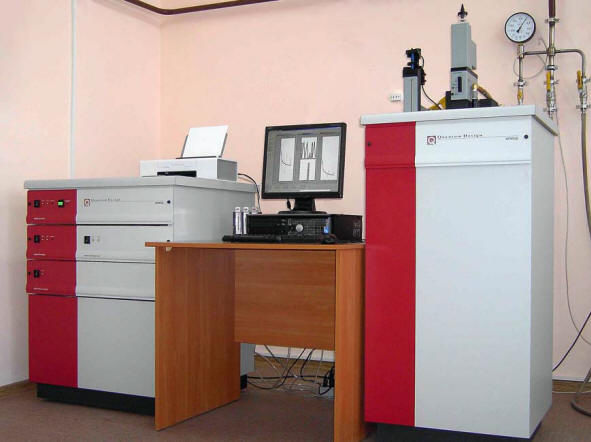

Equipment of the Core Shared Research Facility “SQUID-Magnetometer MPMS-XL5” (by Quantum Design, USA).

The instrument is designed for measuring magnetic properties (magnetization and magnetic susceptibility) of samples with very small magnetic moments, including weakly magnetic materials or samples containing only a small amount of magnetic substance.

The system enables measurements of the magnetic moment for virtually all types of materials, including single crystals, polycrystalline samples, thin films, powders, and others.

  Contact Provider
Provider:
B. Verkin Institute for Low Temperature Physics and Engineering of the National Academy of Sciences of Ukraine

Main Technical Specifications of the MPMS-XL5 SQUID Magnetometer:

  • Magnetic moment measurement range: ±5 EMU
  • Differential sensitivity: ≤ 10⁻⁸ EMU for measurements in magnetic fields up to 0.25 Tesla, and ≤ 2×10⁻⁷ EMU in fields up to 5 Tesla
  • Magnetic field range: ±5 Tesla
  • Magnetic field homogeneity: 0.01% over a region larger than 4 cm (±2 cm from the center)
  • Magnetic field setting accuracy: 10⁻⁴ Tesla for measurements up to 5 Tesla, and 10⁻⁵ Tesla for measurements up to 0.5 Tesla
  • Residual magnetic field: less than 5×10⁻⁴ Tesla
  • Operating temperature range: 1.9 to 400 K
  • Temperature stability at the sample region: ±0.5%
  • Temperature calibration accuracy at the sample region: ±0.5%
  • Temperature stability: ±0.005 K (1.9–4.2 K)
  • Temperature sweep rate: from 0.001 to 10 K/min
  • Maximum sample dimensions: length ≤ 5 mm, transverse size ≤ 5 mm

The instrument is additionally equipped with facilities for magnetic anisotropy studies, including an automated sample rotation system in both horizontal and vertical planes, as well as equipment for magneto-optical investigations.
