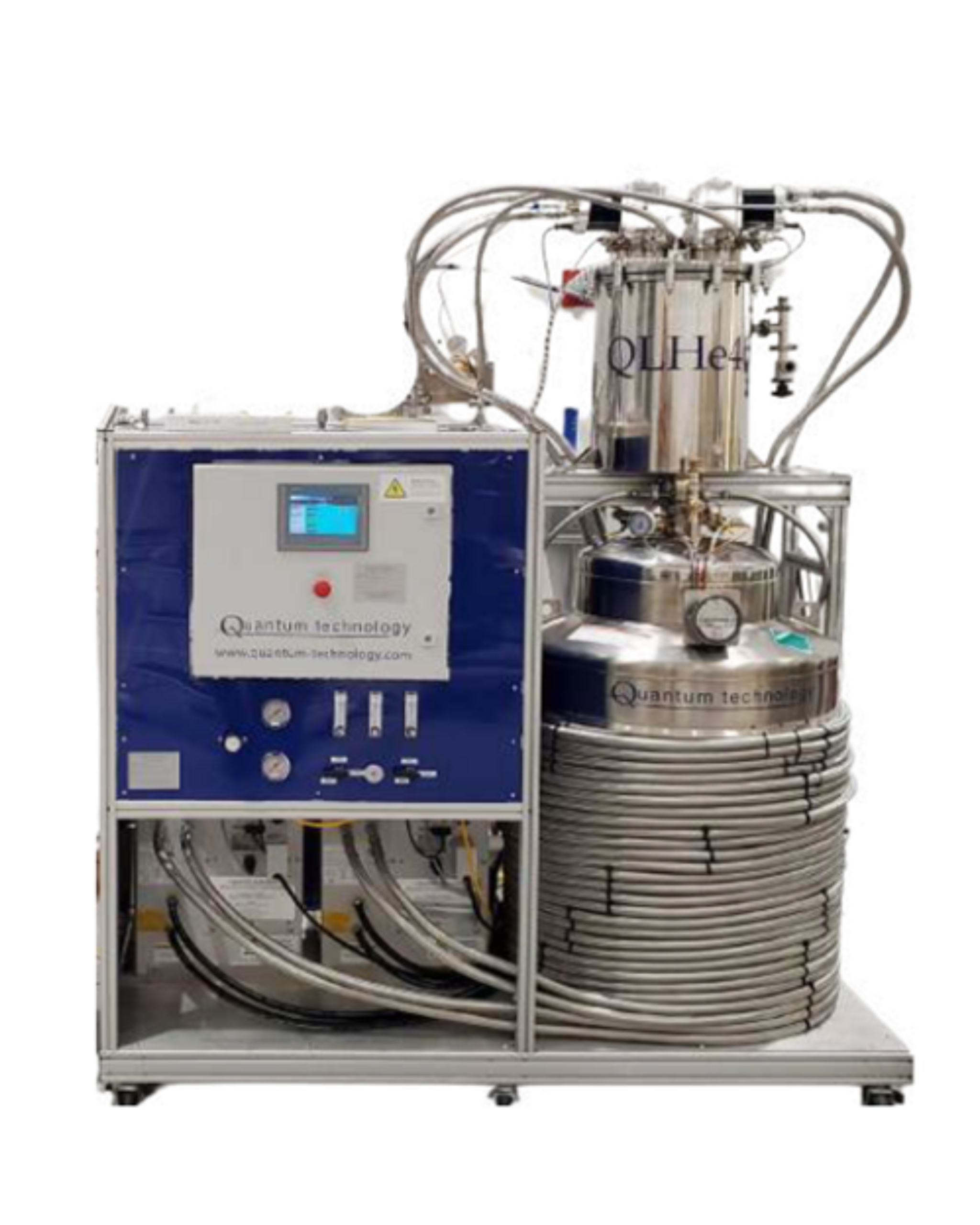

Quantum Helium Liquefier
Model: Q1.1-LHe-20-ID-150-SLS-VD-UPS
- Liquefier Assembly Number: Q1.1LHe20-ID-150-AR-SLS-VD-UPS
- Year: 2025
- Liquefaction Capacity: 20 L/day
- Internal Storage: 150 L stored in a Dewar vessel
- Dewar Weight (empty): 275 lbs (124.74 kg)
- Liquefier Collector Assembly Weight (approx.): 1080 lbs (489.88 kg)
Compressor Unit
- Model: Q9.1QCLHe-WC
- Water Cooling: Yes
- Compressor Power Supply: 400 V, 3-phase, 50 Hz, 13 A
- Ambient Temperature Range: 7 to 38 °C
- Compressor Weight: 260 lbs (117.93 kg)
Standards
- CE Certified
Helium Purity Analyzer
- Model: Q11.1PureA-BGA-IT
- Resolution: 99.999%
Noise Level
-
63 dBA at a distance of 1 meter

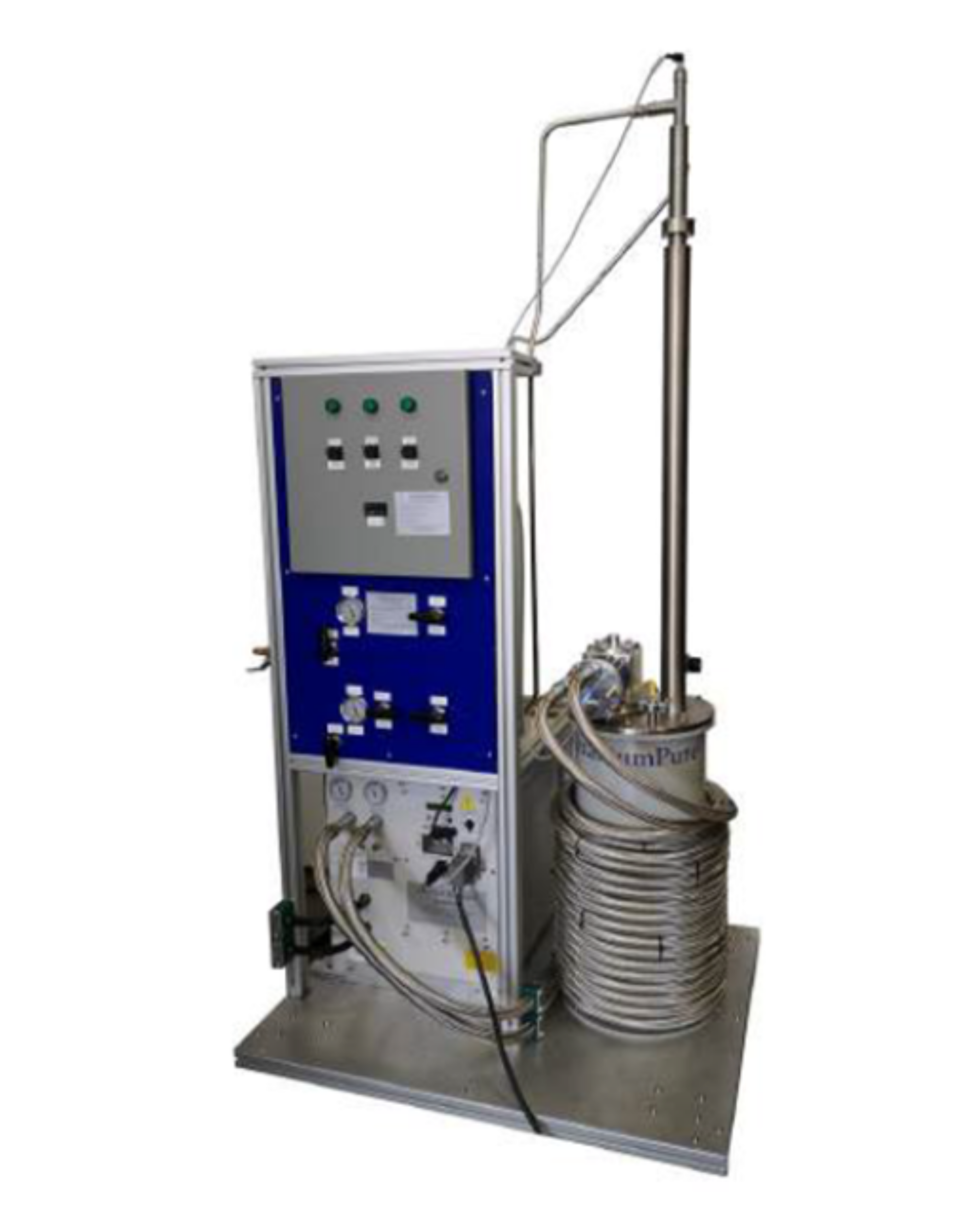

QuantumPure™ Helium Purifier
Model: Q16.1-QPure-CH-15
| Specification | Value |
|---|---|
| Purifier Assembly Number | Q16.1QPure-CH-15 |
| Helium Output Purity | +99.999% He |
| Maximum Allowable Working Pressure | 15 psig (1 atm) |
| Ambient Temperature Range | 4 to 40 °C |
| Compressor Unit | Q9.1CHCOMP-WC |
| Number of Compressors (Purifier Assembly) | 1 |
| Water Cooling | Yes |
| Power Consumption | 6.5 kW |
| Compressor Power Supply | 400 V, 3-phase, 50 Hz, 13 A |
