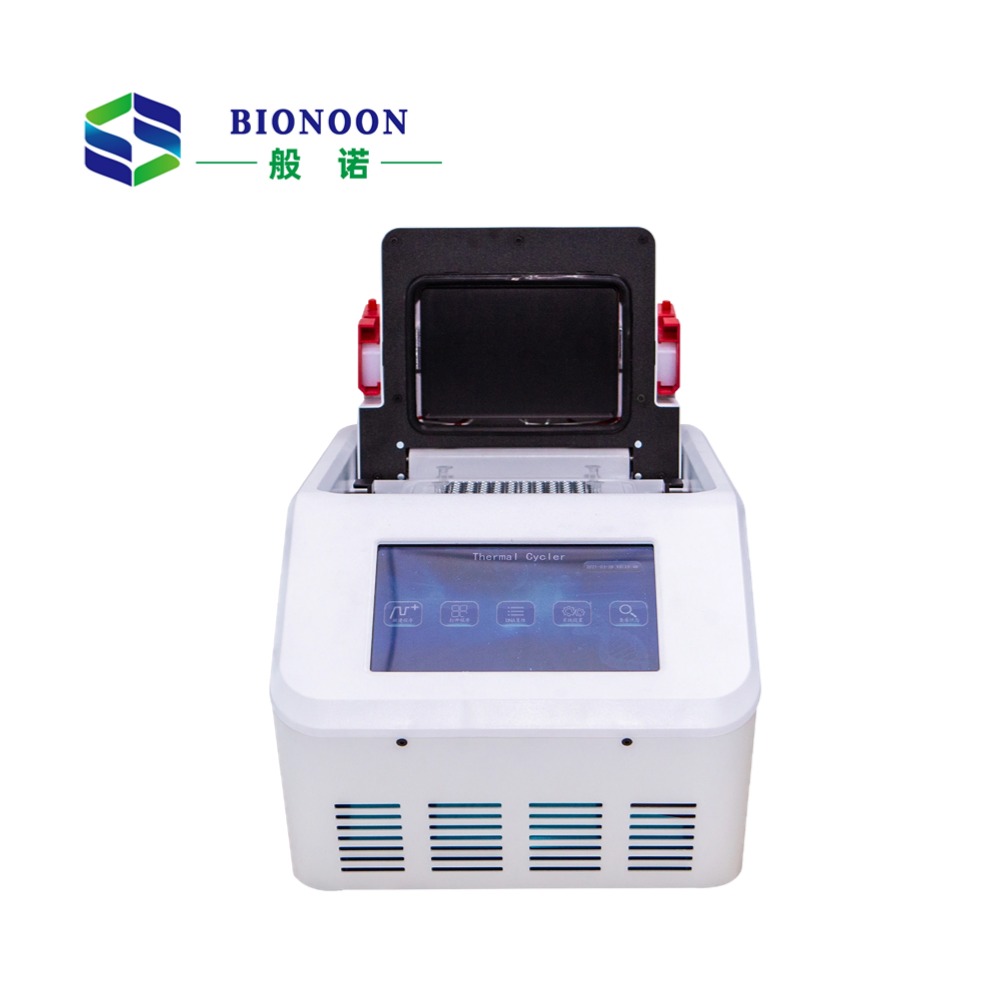

PCR Thermal cycler

【Product introduction】

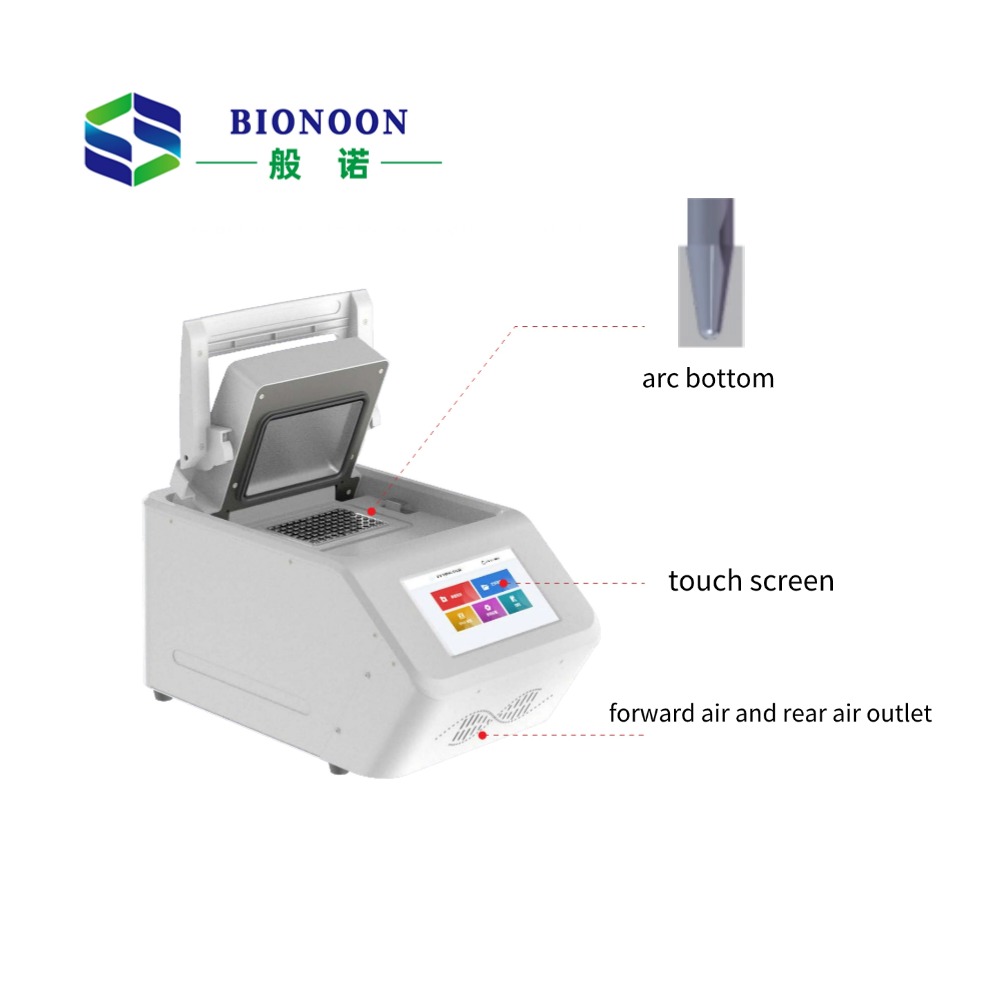

BIONOON- 3100 Thermal cycler is a high-quality Thermal cycler with multifunction of gradient, uniform cooling, U-disk copy, Chinese and English bilingual switching, etc. The innovative design is to ensure the uniform temperature drop exactly meet the user’s
experimental requirements for a uniform and slow drop in temperature. The
instrument design focuses on product functionality and practicability. In order
to better fit the bottom of the PCR tube, the arc design of the bottom of the
module hole is adopted. This design can make the temperature of the sample in the
tube more accurate and more uniform.

In addition, during the experiment, due to the electromagnetic radiation of the laboratory circuit and various instruments, the Thermal cycler may appear crash, pause and other
failures which may result in the loss of precious samples. The BIONOON-3100 Thermal
cycler greatly reduces the influence of electromagnetic interference on the host through the
internal layout, the use of filter stabilized power supply and electronic components, and the design of special material shells which all keep the instrument more stable.

  Contact Provider
Provider:
Shanghai Bionoon
SKU: BN41002 Category: Tag:

【Product Parameters】

1. Instrument type: Compact nucleic acid amplification instrument.

2. Heating element: Peltier

3. Support for 96 modules: 96 holes ×0.2ml.

4.Block’s maximum heating rate: 5°C/second, maximum cooling rate: 5°C/ second.

5. Sample throughput and volume: 1-96 units /10-80 μ l.

6. Sample plate form: 96-well plate (no skirt, half skirt), 8-tube continuous, PCR single tube.

7. Gradient function: Equipped with sample plate base, temperature detector, software control, and precise exploration of PCR annealing temperature.

8. Temperature control range: 0 to 105℃

9. Temperature gradient width: 0.1 to 40℃;

10. Hot cover temperature range: up to 112℃

11. Hot cover contact pressure: Self-adaptive adjustment

12. Temperature accuracy: ±0.1°C

13. Temperature uniformity: <0.3°C (20 seconds after reaching 95°C)

14. Temperature display resolution: 0.1℃

15. Display screen: 7-inch color touch screen, which can display the entire PCR program in full screen

16. Touch down PCR experiments and PCR amplification of fragments up to 10kb in length can be conducted.

17. Storage capacity: The instrument can store up to 20,000 programs and download an unlimited number of programs via a USB flash drive.

18. It has power-off protection function and quick start function.

19. Automatic hot cover closing function: When the temperature of the sample stage drops below the set temperature or the program ends, the hot cover will automatically close.
